Chimney Crown Repair: A Homeowner’s Guide to Protecting Your Chimney
Beyond regular cleaning, the chimney crown requires dedicated attention to prevent structural problems before they start. Professional chimney crown repair is one of the most important preventative maintenance tasks a homeowner can undertake–this concrete or mortar cap seals the top of the chimney from rain, snow, and debris while protecting the brickwork below.
Common causes of crown deterioration include freeze-thaw cycles, which are particularly aggressive for homeowners in the St. Louis area. When moisture seeps into tiny cracks and then freezes, it expands, widening the damage with each season. Even hairline fractures allow water to reach the brick and mortar, leading to spalling, efflorescence, and interior water stains that worsen over time. Chimney crown sealing can close these entry points early, while chimney crown resurfacing offers a durable alternative to full replacement when the substrate is still sound.

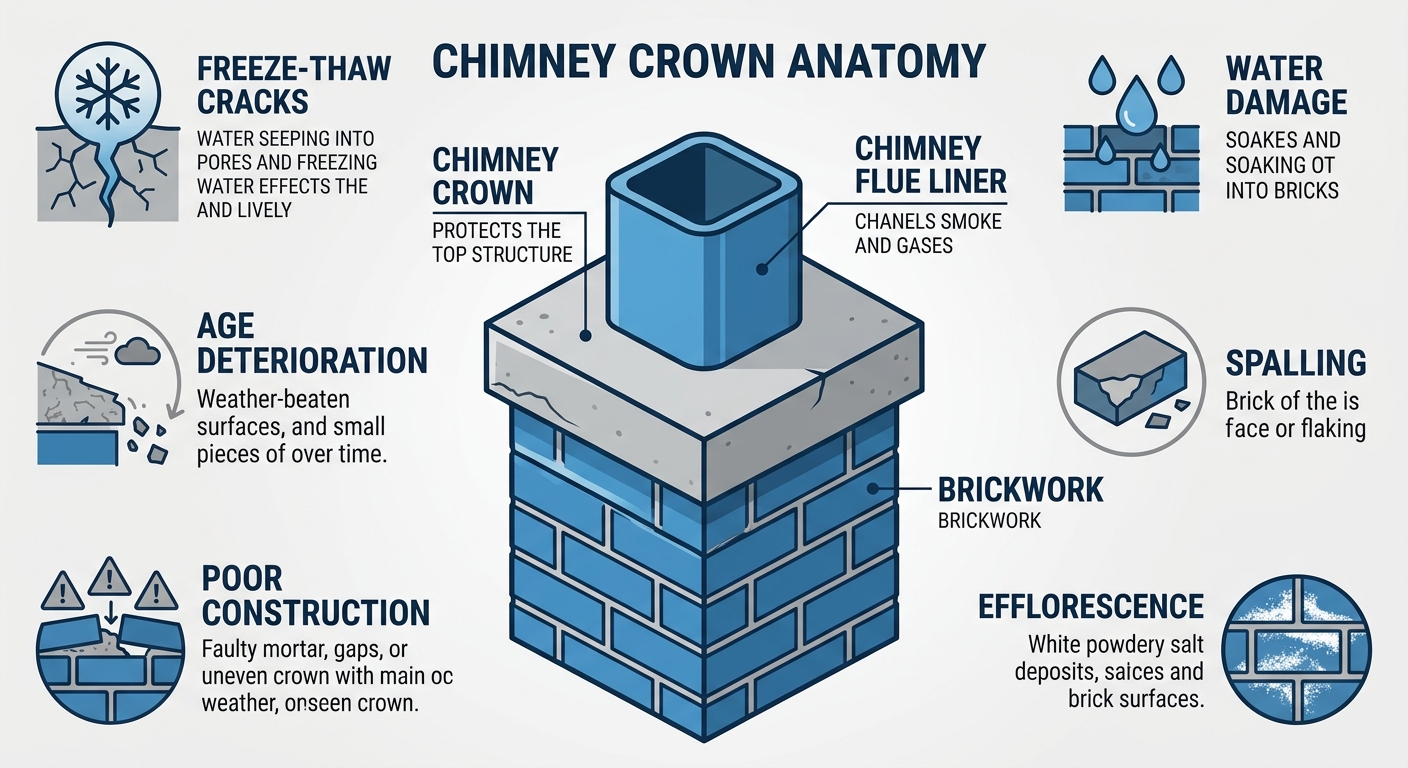

Visual guide to chimney crown damage and anatomy
According to industry best practices published by the Brick Industry Association, proper crown construction and material compatibility are essential for long-term performance. We follow these standards on every project, whether the solution calls for patching, sealing, resurfacing, or a complete crown rebuild. With over a decade of masonry experience, B&G Tuckpointing has helped homeowners across the St. Louis area protect their chimneys through attentive, high-quality repair work.
Addressing crown damage early is far more cost-effective than waiting for moisture to spread into the chimney structure and roofline. We recommend inspecting your crown annually–especially after winter–and reaching out if you spot cracks or surface spalling. For expert chimney crown repair and comprehensive chimney repair st louis, schedule an inspection with B&G Tuckpointing today.
The Role of a Chimney Crown and What Leads to Damage
A chimney crown is the concrete or mortar cap sitting at the very top of your chimney, and it plays a more important role than many homeowners realize. People often confuse it with a metal chimney cap, but the crown is the solid surface that seals the top of the chimney structure around the flue. Understanding its function is the first step in protecting your entire chimney system. When we talk about chimney crown repair, we’re referring to restoring this essential barrier so it can continue doing its job.
The primary function of a chimney crown is waterproofing. It’s designed to direct rainwater, melting snow, and ice away from the flue and the brickwork below. By shedding water outward, the crown prevents moisture from seeping into the chimney’s core, where it can freeze, expand, and cause major structural headaches. Properly installed crowns also meet building code requirements for minimum thickness and slope for water runoff, according to the International Code Council. Without this critical cap, your chimney is exposed to the elements, and water damage becomes a matter of when, not if.
Unfortunately, chimney crowns don’t last forever. The most common culprit behind damage is freeze-thaw cycles. Water naturally seeps into the porous surface of the crown, and when temperatures drop, that water freezes and expands, causing small cracks that grow wider over time. Age-related deterioration is another major factor–crowns that are 20 years or older commonly crack due to decades of weather exposure. We also see problems caused by poor original construction, such as crowns made with a thin mortar mix or one that lacks the proper outward slope. The International Masonry Institute points out that material quality and proper installation are vital for durability. To extend the life of your crown, chimney crown sealing is a protective step we recommend, and for surface-level wear, chimney crown resurfacing can restore a smooth, durable finish.
Neglecting small cracks might seem harmless, but those tiny fissures quickly become pathways for water to reach the brick, mortar joints, and even interior walls. Once moisture gets in, you may notice spalling brick, efflorescence, or water stains on your ceiling. What starts as a simple crown repair can spiral into a full chimney rebuild if ignored. That’s why we recommend annual chimney inspections–catching crown damage early saves money and prevents stress. To help decide between repair and full rebuild, see the comparison table below.
| Aspect | Repair | Rebuild |
|---|---|---|
| Application | Fills cracks, seals, or resurface existing crown | Removes entire crown and pours new concrete or mortar |
| Cost Range | Lower upfront, custom quote from B&G | Higher due to demolition, new material, labor |
| Longevity | 5-15 years depending on material and climate | 15-30 years with proper maintenance |
| Best For | Hairline cracks, minor spalling, or surface wear | Structural damage, large cracks, missing sections |
As the table shows, small cracks and surface wear can often be managed with a targeted repair, while major structural issues call for a full rebuild. Both solutions start with a custom quote from us, so you’ll never pay for more work than your chimney actually needs. Our 13 years of masonry experience means we can assess the damage and recommend the right path, whether it’s a minor seal or a complete crown replacement. For professional chimney repair st louis homeowners trust B&G Tuckpointing to deliver lasting results with in-house financing options. Now that you understand the causes, let’s look at how B&G handles crown repairs.
Identifying and Diagnosing Chimney Crown Issues
Now that you understand the role a chimney crown plays, let’s look at how to tell when it has issues. chimney crown repair is a critical part of home maintenance, and catching damage early can save you from costly structural problems down the road. We’ve seen how small cracks can quickly turn into major leaks, so we’ve put together this guide to help you identify and address crown issues in St. Louis or anywhere across the country.
Signs of Chimney Crown Damage
Identifying a problem starts with a visual inspection, and there are several distinct cues to watch for. Hairline cracks (less than 1/8″ wide) are the most common early sign and often appear as fine, web-like lines from shrinkage. Structural cracks, which are wider than 1/8″ and may have a stepped pattern, signal more significant movement or settling in the chimney, requiring a thorough assessment.
Beyond cracking, you should look for the physical deterioration of the crown material itself. Spalling is a clear indicator, presenting as chipped, flaking, or completely missing pieces of concrete. You might also notice efflorescence, a white powdery deposit left behind when water evaporates from the masonry, or rust stains that point to water reaching and corroding the internal reinforcement. Inside the home, signs of moisture like a damp smell in the fireplace or visible mold on the surrounding ceiling are major red flags.
To assess the severity yourself, a simple feeler gauge can measure crack width, and you can pour a cup of water over a suspected porous area to watch for rapid absorption. Check if cracks extend through the full thickness and look for displacement where the crown meets the flue liner, as this gap is a direct path for water intrusion. While a visual check is a great start, remember that chimney crown repair sometimes requires a professional eye to gauge hidden damage, and we recommend an expert assessment for any crack wider than a hairline.
When to Choose Sealing, Resurfacing, or Full Replacement
Choosing the right intervention depends on a careful evaluation of the crack type, the crown’s material, and its age. For a poured concrete crown that is less than 10 years old with only hairline or shrinkage cracks under 1/8″, chimney crown sealing is often the ideal, low-cost preventive solution. If you’re seeing moderate cracks (1/8″ to 1/4″) or surface spalling on a crown that’s 10 to 20 years old, then chimney crown resurfacing with a thicker elastomeric overlay is the best restorative approach.
For more severe structural issues, the decision is very clear. When a crown shows cracks wider than 1/4″, full-depth cracks that split the crown, displacement from the flue, or widespread deterioration on a structure over 20 years old, a complete rebuild is the only safe option. If you determine a full replacement is needed, explore our specialized chimney rebuild St. Louis service to restore your chimney safely. A replacement is a bigger project but ensures long-term stability, and we adhere to International Code Council (ICC) standards, which call for a minimum crown thickness of 2 inches and a slope of 1/4 inch per foot for proper runoff.
The table below draws on industry data to visually contrast two of the most common repair paths, making it easier to see which fits your situation.
| Feature | Chimney Crown Sealing | Chimney Crown Resurfacing |
|---|---|---|
| Application | Applies a liquid sealant or coating to surface cracks and pores | Applies a thicker elastomeric or cementitious overlay |
| Durability | 3-7 years depending on exposure and product quality | 10-20 years with proper application |
| Cost | Lower cost, preventive maintenance | Higher cost, restorative |
| Best For | Preventing new cracks, minor hairline cracks, early-stage wear | Moderate cracking, spalling, surface degradation |
¹ Based on ICC code-compliant application | ² Per BIA Technical Notes
This comparison highlights that neither approach is inherently better, as each serves a different stage in a crown’s lifecycle. chimney crown sealing excels as a proactive defense for a young, solid crown, while chimney crown resurfacing acts as a robust restorative layer that adds 10 to 20 years of life to a crown showing its age. According to the Brick Industry Association, a well-maintained poured concrete crown typically lasts 15-25 years, and a cast-in-place or precast crown can serve for 20-30 years, so your choice is really about where your chimney falls on this timeline.
At B&G, our mission is to provide residential and commercial customers with an outstanding level of service, whether you need a quick sealing call or a complete crown replacement. We Service Tuckpointing Clients Nationwide & Offer In-House Financing! Need help evaluating your chimney crown? Contact us for a custom quote–we serve customers nationwide. Once you’ve decided on the right approach, the next step is proper execution. Up next, we cover how our team handles each repair method.
Now let’s explore how professionals handle these issues step by step. Understanding the chimney crown repair process gives property owners confidence that the right techniques and materials will be used to stop water intrusion and extend the life of the chimney. With our extensive experience across the country, we know that each chimney crown tells a unique story, and the restoration approach must address its specific condition. For those who want to explore options beyond reading, searching for masonry repair near me will connect you with qualified experts, and we’d be honored to be among them.
Professional Solutions for Chimney Crown Repair and Maintenance
The Chimney Crown Repair Process
A professional chimney crown repair involves a sequence of meticulous steps, each designed to ensure the repair bonds correctly and stands the test of time. The process always begins with a thorough inspection to uncover the full extent of the damage.
Inspection and Assessment
A skilled mason first performs a comprehensive visual examination of the crown, looking for visible cracks, spalling concrete, and areas where mortar has deteriorated. This step is not just about the surface; it involves assessing the crown’s slope to ensure water will shed properly and checking for deeper structural issues that could undermine the repair. As part of our commitment to quality, this assessment aligns with the rigorous standards outlined by the International Code Council, whose building safety codes specify minimum requirements for chimney crown design and structural safety factors.
Mortar Removal and Surface Preparation
Once the inspection is complete, the damaged material must be removed. Professionals use hand tools, grinders, or light chipping hammers to strip away deteriorated mortar and loose concrete until a solid, sound substrate is exposed. This step is critical; applying new material over a failing base guarantees a short-lived repair. The prepared surface is then cleaned of all dust and debris, often with a pressure washer, to ensure an optimal bond.
Application of Repair Materials
With a clean, solid base, the mason applies the new crown material. We prefer using high-quality hydraulic cement or a polymer-modified mortar, which offers superior adhesion, flexibility, and resistance to water penetration compared to standard mixes. The material is carefully troweled on in thin, even layers, building up the crown to its proper height and slope. This layering technique prevents sagging and reduces the chance of shrinkage cracks. The techniques and mix ratios we use reflect the best practices of master craftspeople, guided by the training and quality standards promoted by the International Masonry Institute.
Proper Curing for Long-Term Strength
The final and most critical stage is curing. Unlike simply “drying,” curing is a chemical process that requires consistent moisture to achieve full strength. Depending on the product used and the weather, we typically moist-cure the new crown for a period of 3 to 7 days. During this time, the crown is kept damp to prevent the surface from hardening too quickly and cracking. This patience during the curing phase is what transforms a good repair into a durable, long-lasting one.
Sealing and Resurfacing: Step-by-Step
After a chimney crown repair is structurally sound, the next line of defense is sealing and resurfacing the crown. This chimney crown sealing creates a waterproof barrier, while resurfacing can renew an older, porous crown, effectively creating a new, durable shell. With chimney crown resurfacing, we can often avoid a full replacement by encapsulating the existing top with a high-performance coating.
The process is a systematic application that locks out moisture.
Cleaning and Base Preparation
The process starts with a clean surface. Any dirt, soot, or biological growth is removed with a pressure washer. If the existing crown is severely porous or chalky, a primer or bonding agent is applied. This base coat seeps into the surface, solidifying it and creating the perfect “grip” for the sealant.
Applying the Elastomeric Coating
Once the primer is tacky, we roll or brush on a specialized elastomeric coating. This thick, rubber-like material is designed to stretch and bridge any future hairline cracks that may develop, maintaining a continuous waterproof shield. It is always applied in two thin, uniform coats rather than one thick layer to ensure it cures evenly without trapping solvents or moisture.
Curing Time and Final Protection
Between coats, we allow 24 to 48 hours for the product to dry and begin curing. After the second coat, the chimney crown is given a final cure time, which is typically up to 7 days before it should be exposed to heavy rain. This patience yields a seamless, monolithic barrier that can protect the chimney from freeze-thaw cycles and water erosion for over a decade, far outperforming a simple brick-and-mortar finish.

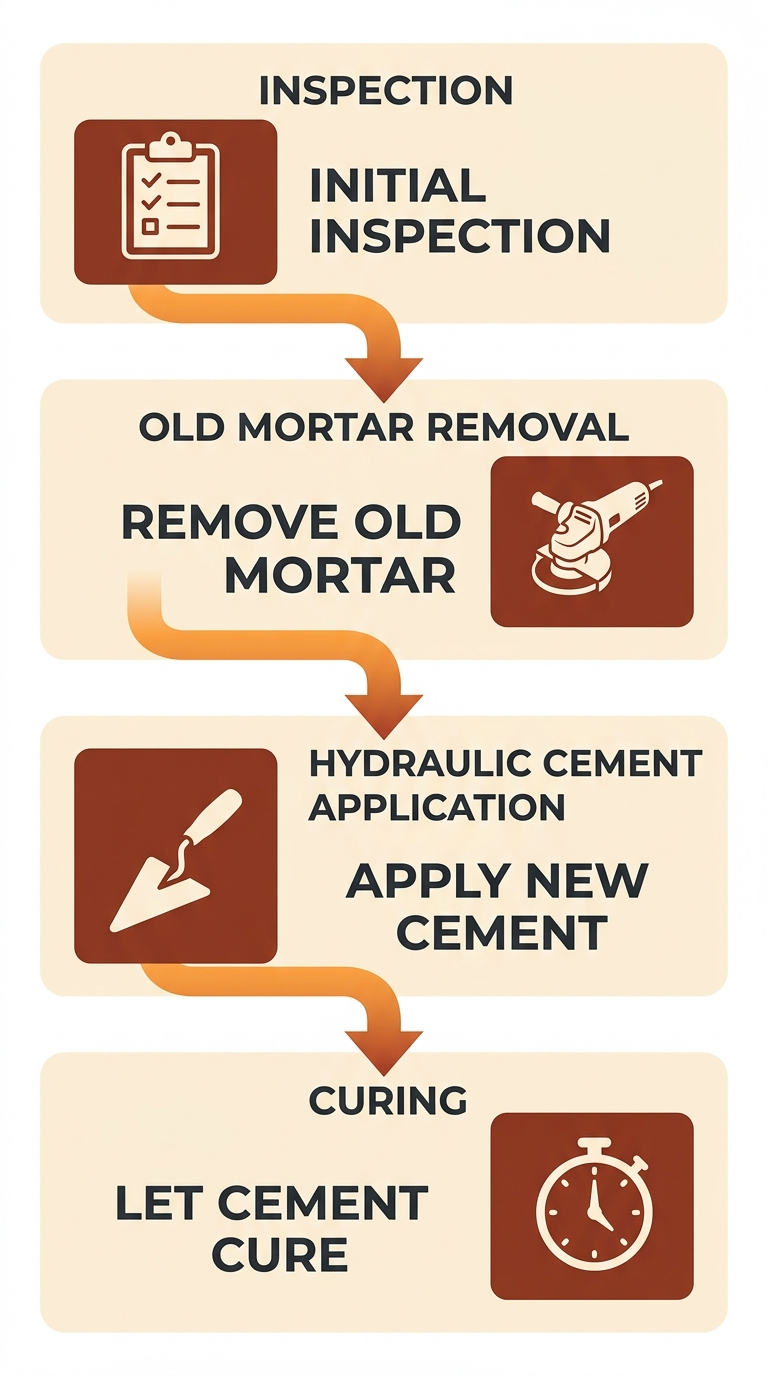

Professional chimney crown repair process visualization
When considering the best approach for your home, the choice between DIY and a professional service is a significant one. The following table compares critical aspects of each option to help you make an informed decision, weighing immediate savings against long-term performance and peace of mind.
| Aspect | DIY | Professional Masonry Service |
|---|---|---|
| Skill Required | Basic home improvement skills; sealant application straightforward | Expert knowledge of materials, structural assessment, safety protocols |
| Tools & Materials | Sealant, brush, roller, caulking gun, ladder, safety gear | Specialized mixes, pressure washers, trowels, mixing equipment, PPE |
| Longevity | 1-3 years; may peel, crack, or wear unevenly | 5-20 years depending on method (seal vs. resurface) and warranty |
| Warranty / Guarantee | None; full liability on homeowner | Often includes workmanship warranty; peace of mind |
| Average Cost | $50-150 for sealant and basic tools | Custom quote; includes inspection, labor, and materials |
Understanding these processes helps you see why a professional investment pays off–and B&G makes it easy with in-house financing. We aim to enhance the appearance and improve the integrity of your house or building, and our tailored approach to each chimney crown restoration reflects this commitment. When you are ready for a long-term solution instead of a recurring weekend project, reach out to us for your custom quote.
Extending the Life of Your Chimney Crown with Advanced Techniques
While basic patching can address minor cracks, advanced sealing and resurfacing provide long-term protection that significantly extends your chimney crown’s lifespan. For St. Louis homeowners, investing in professional chimney crown repair is the most effective way to prevent water intrusion and avoid costly structural damage down the road. These advanced solutions go beyond surface-level fixes to restore the crown’s full protective function.
Chimney crown resurfacing involves applying a new, high-quality mortar or specialized cementitious layer directly over the existing crown. This technique rebuilds the crown’s surface to its correct slope and thickness, which is critical for shedding water away from the flue and brickwork. According to industry-standard guidelines from the Brick Industry Association, proper crown construction and maintenance are essential for masonry durability. Rather than a simple patch job, resurfacing addresses widespread hairline cracking and surface erosion in one comprehensive treatment, giving your chimney a fresh protective barrier that stands up to St. Louis weather.
Equally important is chimney crown sealing, a proactive treatment that penetrates the crown’s surface to repel water while allowing the masonry to breathe. We apply commercial-grade sealants that bond with the mortar to create a waterproof membrane, stopping moisture before it can seep in and cause spalling or freeze-thaw damage. When combined with annual inspections, sealing provides an ongoing defense that identifies and addresses deterioration in its earliest stages. This dual approach of resurfacing and sealing ensures your crown maintenance delivers lasting value and peace of mind.
At B&G Tuckpointing, we take pride in helping homeowners protect their biggest investment with expert masonry care. We aim to enhance the appearance and improve the integrity of your house or building. For long-lasting results, trust our team for expert brick repair st louis homeowners rely on. Contact us today for a custom quote on chimney crown services tailored to your property’s specific needs.
Frequently Asked Questions About Chimney Crown Repair
What are common signs my chimney crown needs repair?
Visible cracks, crumbling mortar, or spalling on the crown surface are clear indicators of trouble. We often find water pooling around the base of the chimney or leaks inside the home after heavy rain, which suggests the protective crown is failing. For extensive damage, it is wise to contact a trusted brick repair near me before moisture penetrates deeper into the masonry.
What is the difference between chimney crown repair, sealing, and resurfacing?
Chimney crown repair targets structural fixes like bridging cracks and patching broken sections to restore integrity. In contrast, chimney crown sealing involves applying a waterproof sealant to shield the crown from future weather damage without rebuilding any part of it. Chimney crown resurfacing goes further by adding a fresh, protective mortar layer over the entire crown to extend its lifespan when the damage is widespread.
How much does chimney crown repair cost?
We offer custom quotes because every chimney presents unique challenges, from crown material to accessibility and damage severity. Rather than relying on a one-size-fits-all price, we evaluate your specific situation and recommend the most effective solution. This approach ensures you invest in restoration that genuinely protects your home for the long term.
Why should small cracks be taken seriously?
Even hairline fractures allow water to creep in, and freeze-thaw cycles quickly widen them into larger structural issues. Neglecting these tiny openings often leads to interior water stains, mold growth, and expensive brick repair later on. Early intervention keeps the chimney strong and prevents a minor fix from turning into a major reconstruction project.
When should I hire a professional for chimney crown repair?
You should call a professional the moment you spot cracking or efflorescence, since working at roof level demands proper safety gear and experience. We assess not only the crown but also the surrounding mortar and flashing to catch hidden problems before they escalate. If you notice leaning, extensive spalling, or interior leaks, we recommend reaching out for an on-site inspection right away.
Ready to schedule your chimney crown repair? Get a free quote from B&G Tuckpointing today.
Safeguarding Your Home with Expert Chimney Crown Care
The chimney crown is the concrete surface that seals the entire top of your chimney, unlike a cap which sits over the flue. When cracks develop, water penetrates the masonry where it freezes and expands during St. Louis winters–leading to costly deterioration. Our chimney crown repair services include inspection, sealing and resurfacing performed by skilled masonry specialists. We help you avoid extensive structural repairs through proactive chimney crown sealing and resurfacing. Contact us for an inspection and discover how a small maintenance investment can protect your entire chimney system.
